Inserts for elbow welding

For welding of standard elbows to tubes without straight side attachment.
When using this inserts on a weld head side (left or right) only the gas protection around the elbow is guaranteed; there is no clamping so that the elbow has to be tacked in place before welding.

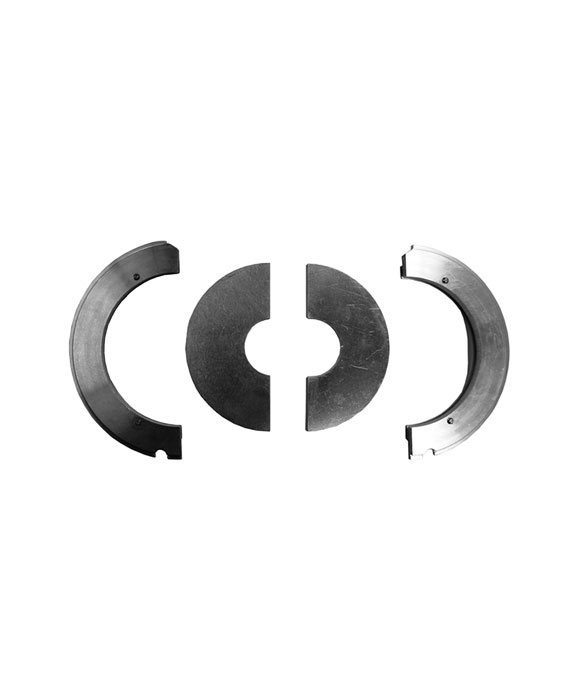

Inserts, consisting of:

• 2 basic retainers, independent of the tube diameter
• 2 covers, depending on the tube diameter

Retainer/Cover
The covers are placed into the retainer and can be turned so that the side of the elbow can exit at any angle from the weld head. The tube to be welded on the other side of the weld head must be straight and be clamped with inserts from the particular standard clamping insert set (standard clamping inserts are not included in the scope of delivery).

Elbow cover plate for OW 38S
For the OW 38S the covers (2 halves) are made to customer specifications and have to be placed without retainers directly into the head. A basic retainer is therefore not required.

When ordering, please indicate and/or submit:

• The required tube OD and the inside radius of the elbow.

• Drawing of the elbow or sample part — an appropriate drawing template is available in advance on request. We will then check whether or not an additional electrode adapter is required.
